6*19+FC High-performance Stainless Steel Wire Rope 304/316

6×19+FC Stainless Steel Wire Rope Product Introduction

Overview: The 6×19+FC stainless steel wire rope is a high-performance, versatile rope designed to provide exceptional strength, flexibility, and durability. Featuring a 6×19 construction with a Fiber Core (FC), this wire rope is ideal for medium to heavy-duty applications that require resistance to wear, corrosion, and environmental stress. Made from premium stainless steel (304, 316, or 316L), it offers outstanding performance in marine, construction, industrial, and outdoor environments where reliability and longevity are critical.

Key Features:

High Corrosion Resistance
Manufactured from high-quality stainless steel (304, 316, or 316L), the 6×19+FC wire rope is highly resistant to corrosion, rust, and environmental degradation. This makes it suitable for use in challenging environments such as marine, offshore, and chemical processing industries, where exposure to moisture, saltwater, and harsh weather is common.

Superior Strength and Durability
The 6×19+FC wire rope features six strands of 19 wires each, providing a robust structure capable of handling medium to heavy-duty loads. This construction ensures high tensile strength and long-lasting performance, making it suitable for applications that require reliability under stress and heavy use.

Fiber Core (FC) for Added Flexibility and Cushioning
The inclusion of a Fiber Core (FC) in the rope's construction enhances its flexibility and resistance to crushing. This fiber core also acts as a natural cushion, reducing the likelihood of internal damage from bending or tension, making the rope more resistant to wear and fatigue. The fiber core also provides greater flexibility, making it easier to handle and install, especially in applications with frequent bending or pulleys.

Excellent Flexibility and Low Elongation
The 6×19+FC construction offers improved flexibility over wire ropes with steel cores. It performs well in applications where the rope needs to bend around pulleys or other mechanical components. Additionally, the rope’s low elongation ensures stable performance, reducing stretch under load and maintaining its shape and strength over time.

Abrasion Resistance
With its combination of high-quality stainless steel and a fiber core, the 6×19+FC wire rope is highly resistant to abrasion and wear. This ensures that it can withstand rough handling, friction, and prolonged use without significant degradation.

Versatility and Easy Handling
The 6×19+FC stainless steel wire rope is easy to handle and install, making it ideal for a wide range of applications. The flexibility and cushioning provided by the fiber core allow the rope to perform well even in demanding environments and high-tension applications.

Applications:

Marine and Offshore
Due to its excellent corrosion resistance, the 6×19+FC stainless steel wire rope is commonly used in marine and offshore industries for tasks such as mooring, anchoring, and securing cargo. It is well-suited for environments exposed to saltwater and harsh weather conditions.

Construction and Rigging
This wire rope is widely used in construction for lifting, hoisting, rigging, and securing materials. The 6×19+FC construction provides the necessary strength and flexibility for use in cranes, hoists, and other heavy-duty equipment commonly found on construction sites.

Industrial Applications
In industrial environments, the 6×19+FC wire rope is employed in various material handling applications, including conveyors, winches, and hoists. Its durability and ability to withstand high-stress conditions make it suitable for heavy machinery and industrial processes.

Transportation and Logistics
The 6×19+FC wire rope is often used in the transportation and logistics sectors to secure cargo, load lifting, and tensioning. Its ability to resist wear and corrosion makes it ideal for use in harsh conditions, such as loading and unloading in ports or warehouses.

Agriculture and Forestry
The rope’s flexibility and strength also make it ideal for agricultural and forestry applications, such as securing equipment, lifting, and handling materials in environments where the rope will be subjected to outdoor elements.

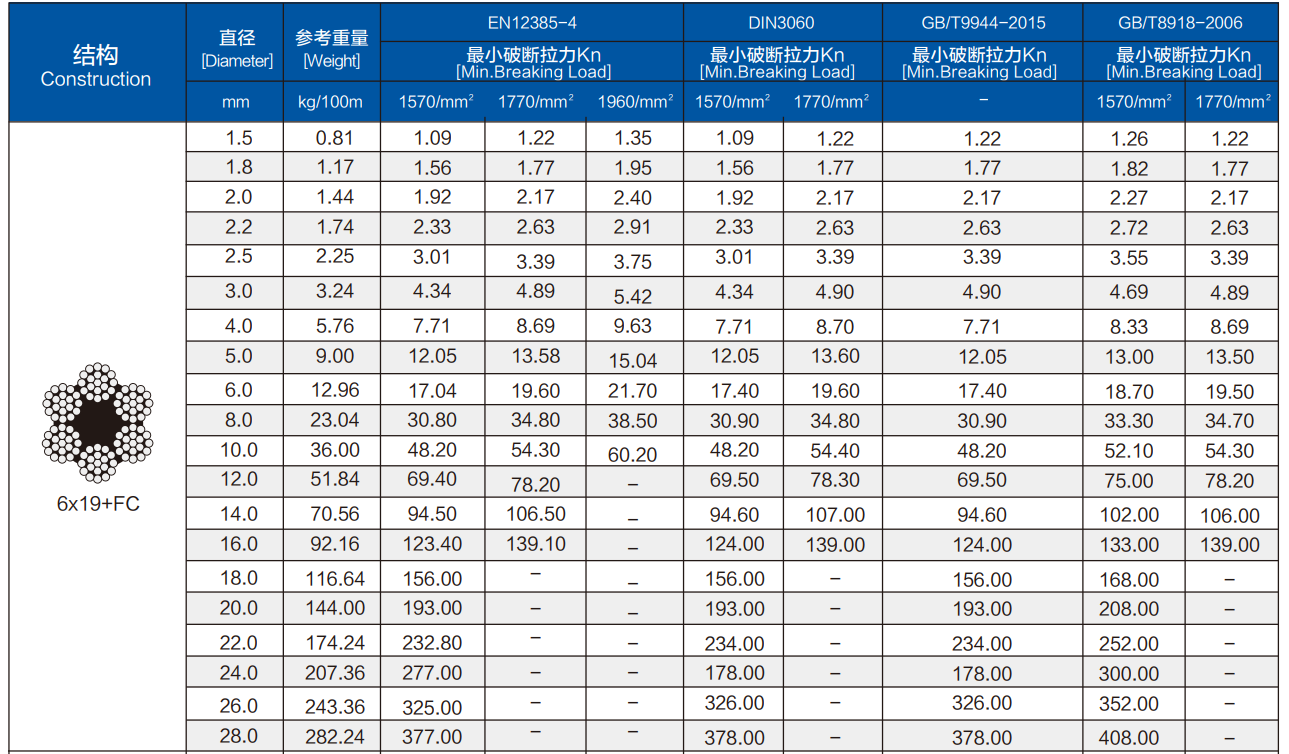

Specifications:

Construction: 6×19 (6 strands, each with 19 wires) with Fiber Core (FC)
Material: Stainless Steel (304, 316, 316L)
Diameter: Available in various sizes, from small (2mm) to large (30mm or more), with custom diameters available upon request.
Breaking Strength: Suitable for medium to heavy-duty applications, with breaking strengths depending on rope diameter.
Surface Finish: Bright, polished, or passivated finish for enhanced corrosion resistance and smooth operation.
Quality Control: Each 6×19+FC stainless steel wire rope is subjected to rigorous quality control processes to meet or exceed international standards such as ISO, ASTM, and DIN. Tests include tensile strength, elongation, corrosion resistance, and wear resistance, ensuring the rope provides reliable and long-lasting performance in the intended applications.

Conclusion: The 6×19+FC stainless steel wire rope offers an ideal combination of strength, flexibility, and durability, making it a versatile solution for a wide range of medium to heavy-duty applications. Its excellent resistance to corrosion, wear, and environmental stress, coupled with the added flexibility provided by the fiber core, ensures long-lasting performance. Whether used in marine, construction, industrial, or transportation sectors, the 6×19+FC wire rope provides reliable and cost-effective performance in challenging environments.
